Part 0: Calibrating Your Camera and Capturing a 3D Scan

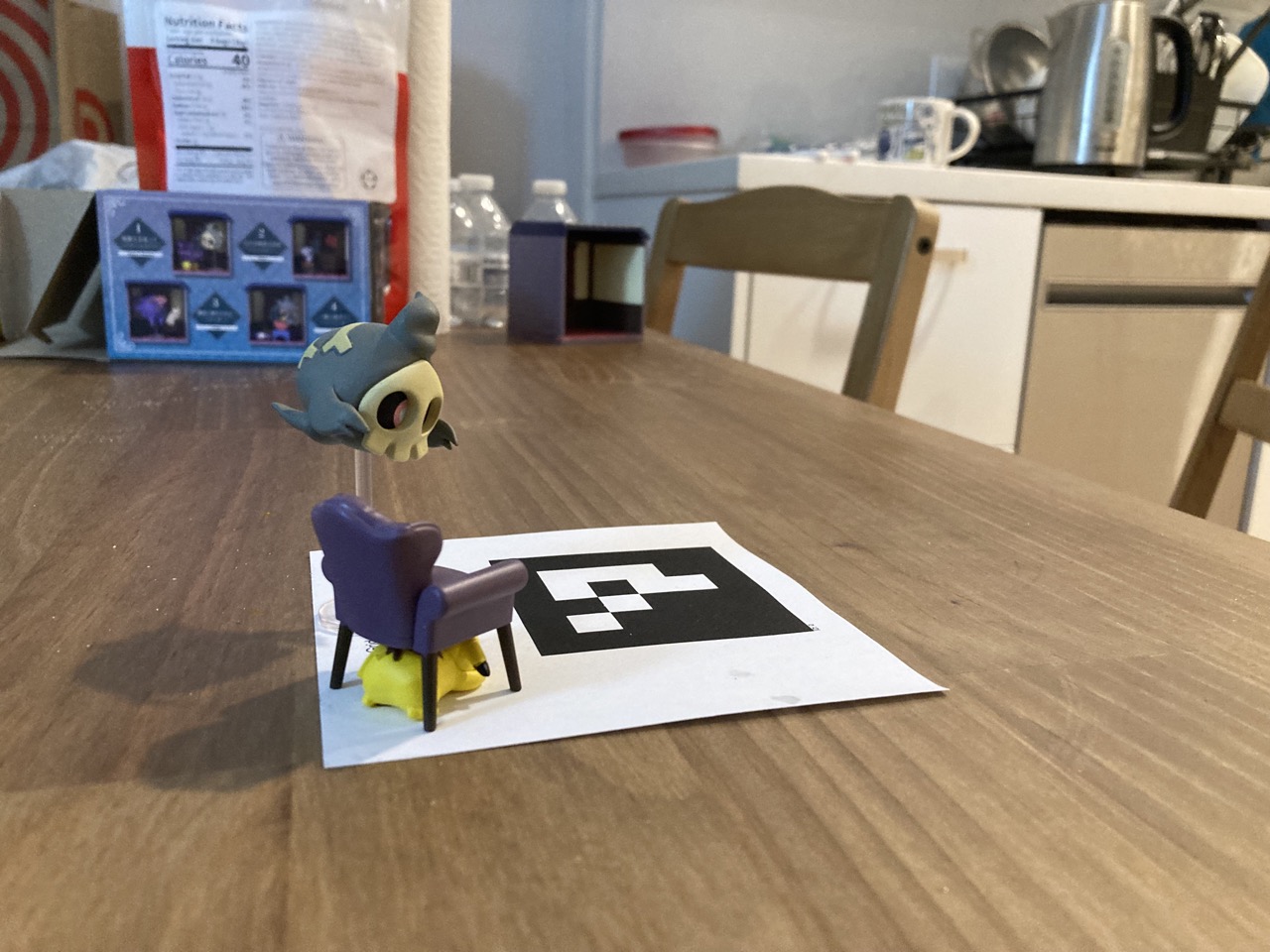

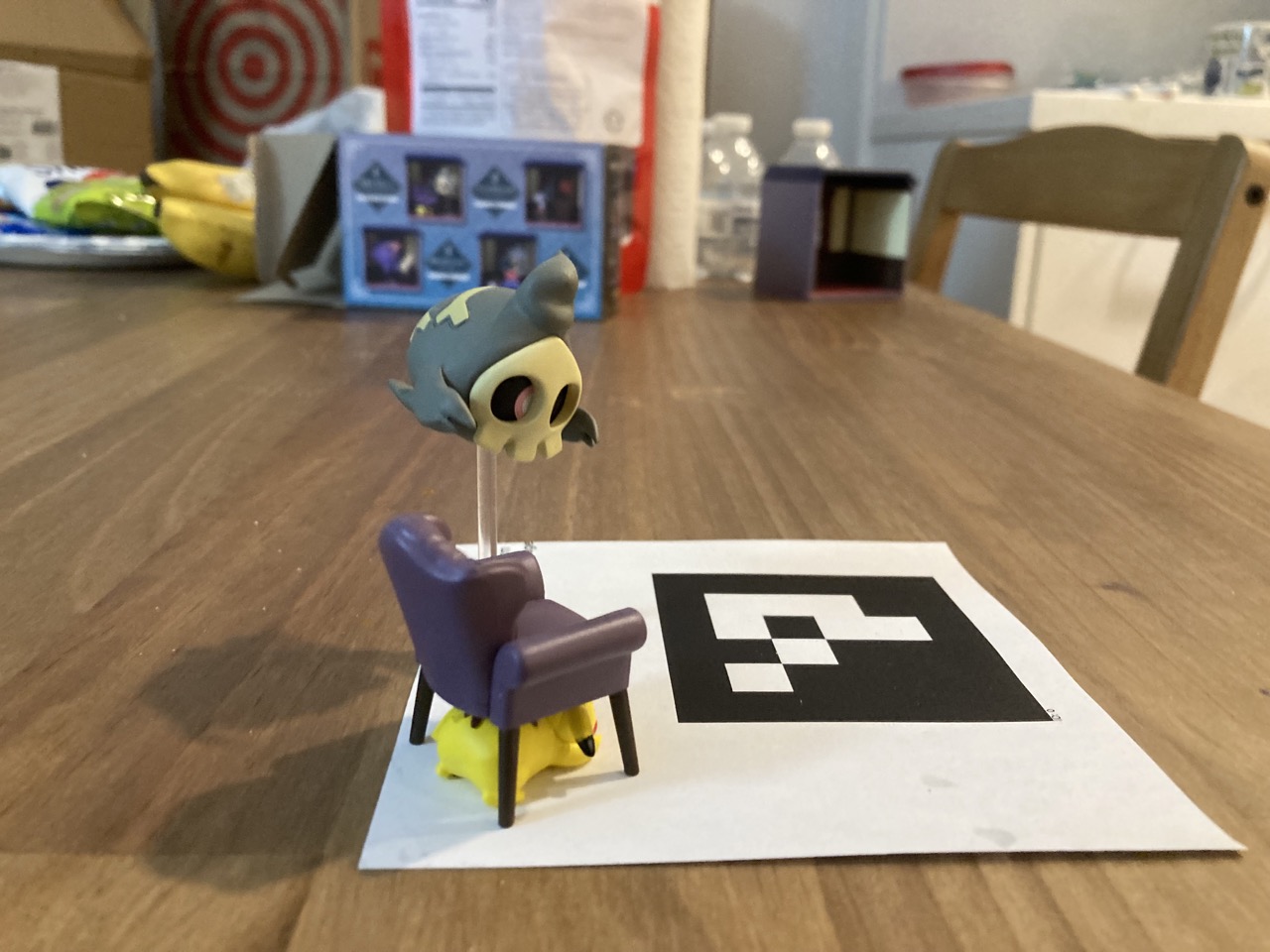

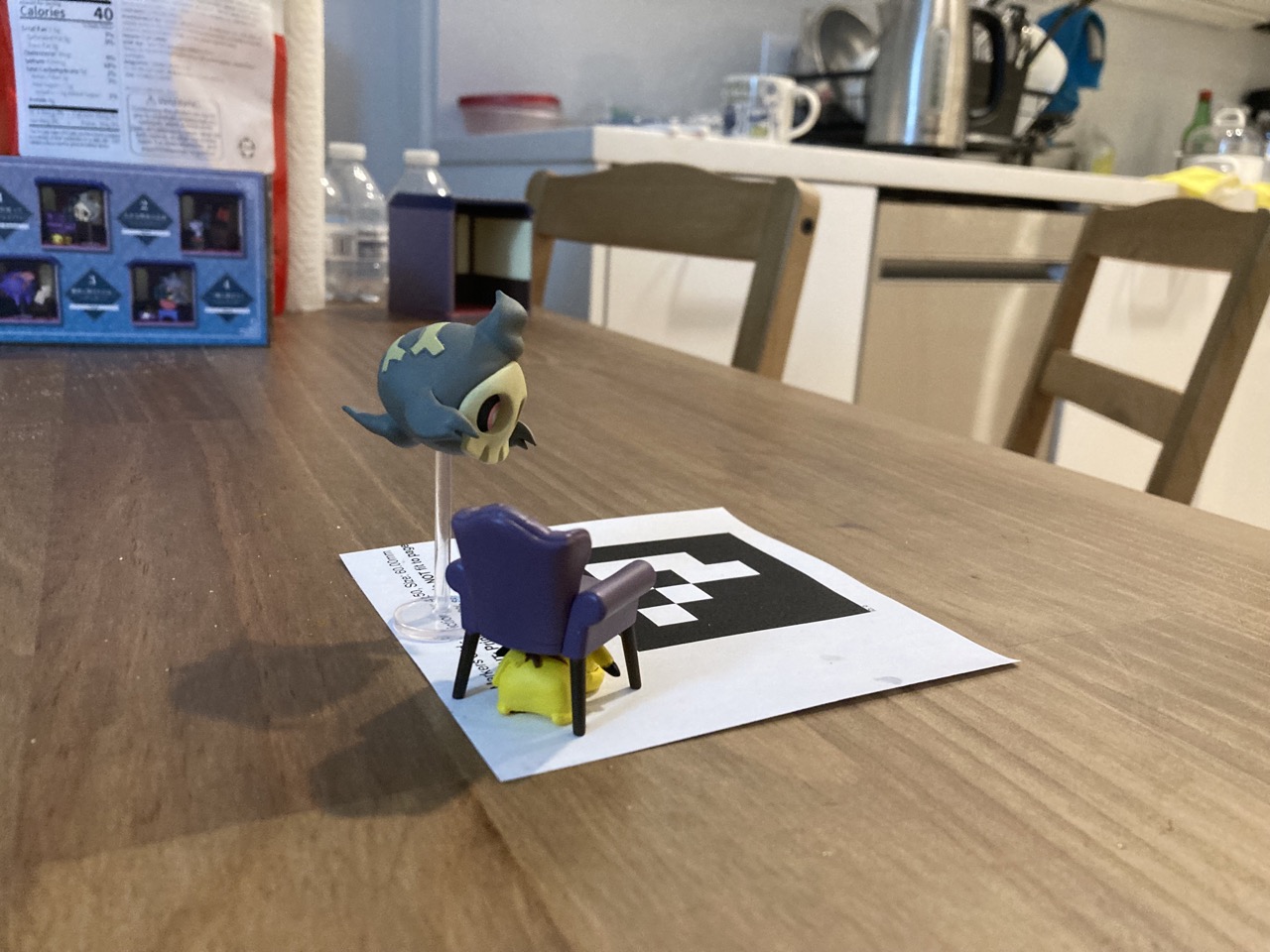

Some original cpatured images

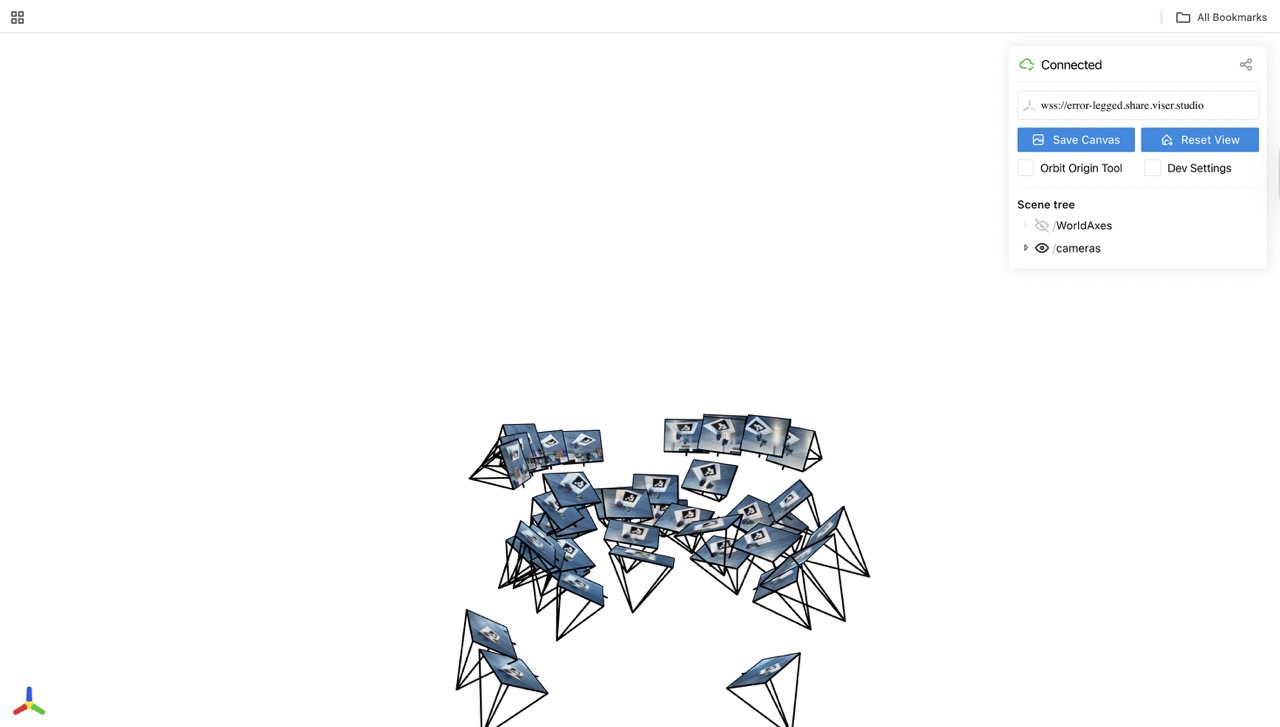

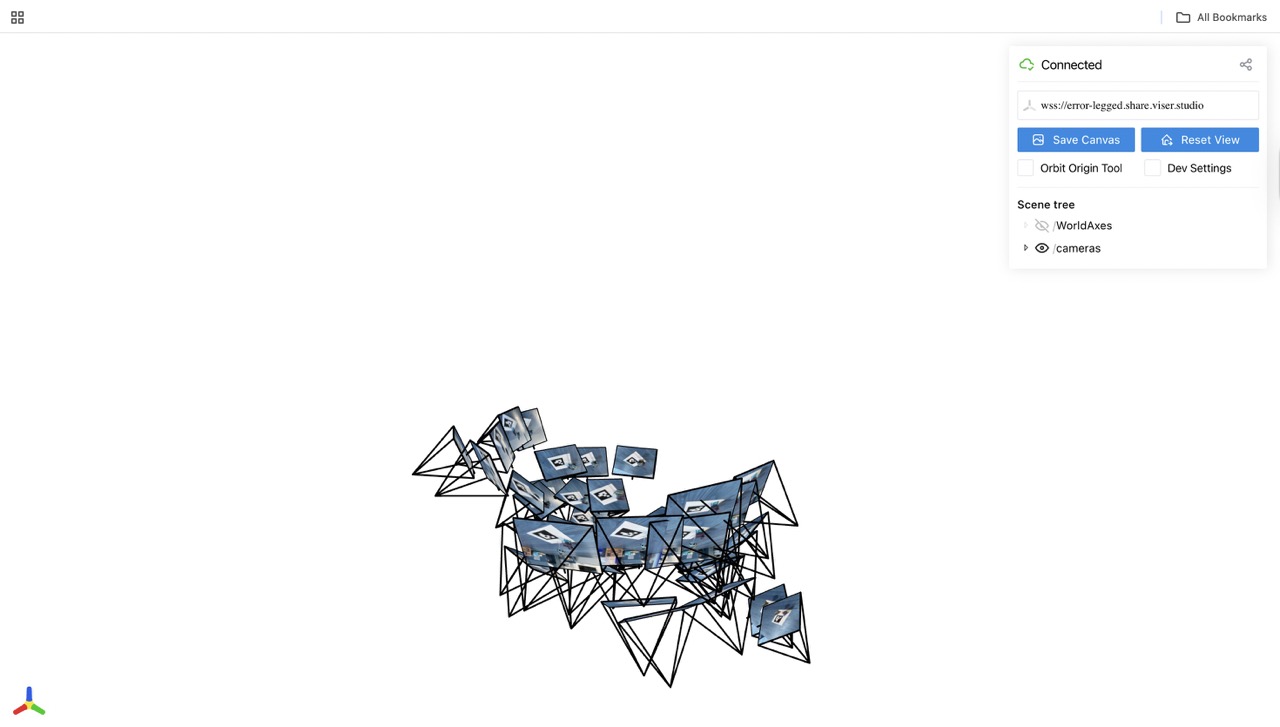

Images in Viser

Note: I didn't do image undistort because I feel my camera didn't cause too much distoriton and won't affect training

Part 1: Fit a Neural Field to a 2D Image

Model Archtecture


mlp = nn.Sequential(
    nn.Linear(82, 256),
    nn.ReLU(),
    nn.Linear(256, 256),
    nn.ReLU(),
    nn.Linear(256, 256),
    nn.ReLU(),
    nn.Linear(256, 3),
    nn.Sigmoid()
)
lr = 1e-2
num_epochs = 3000
batch_size = 10000
optimizer = torch.optim.Adam(mlp.parameters(), lr=1e-2)
criterion = torch.nn.MSELoss()
L = 20

Hyperparameter Comparision

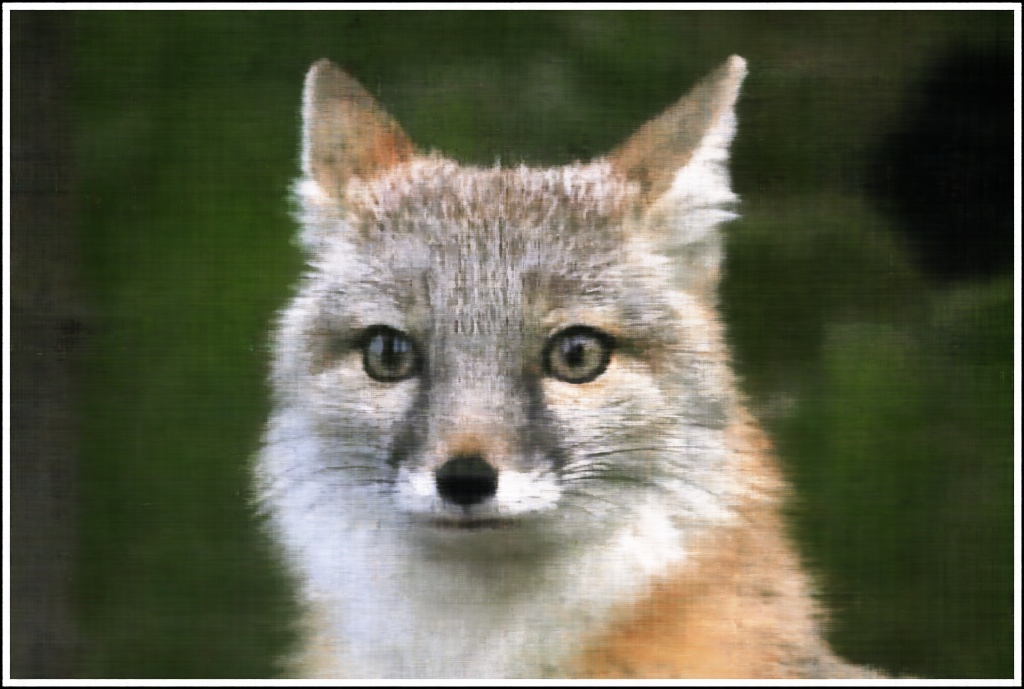

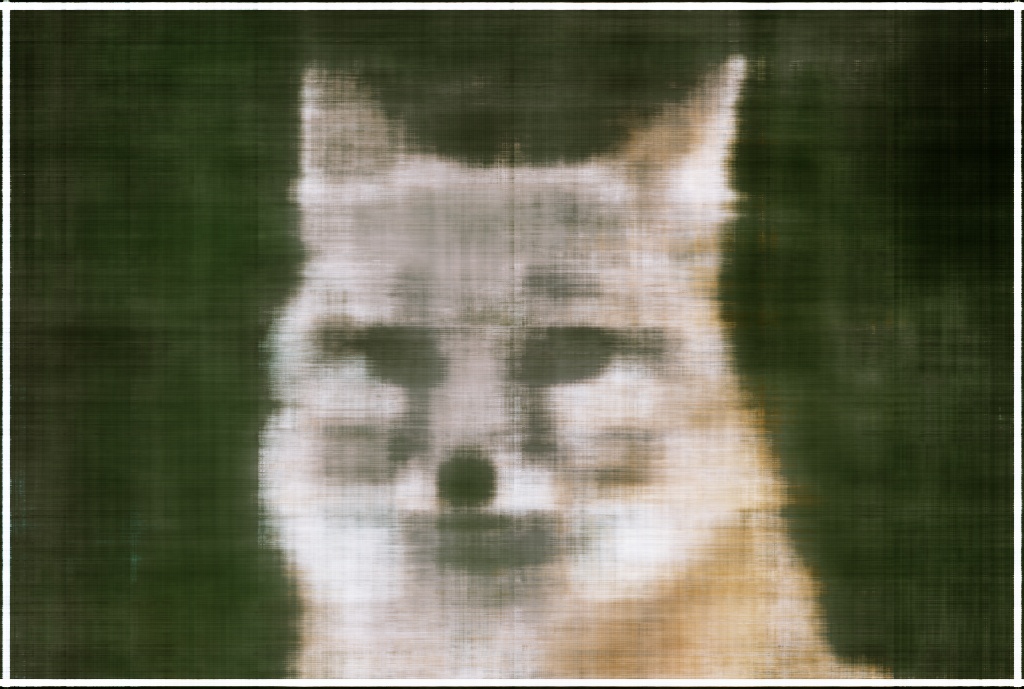

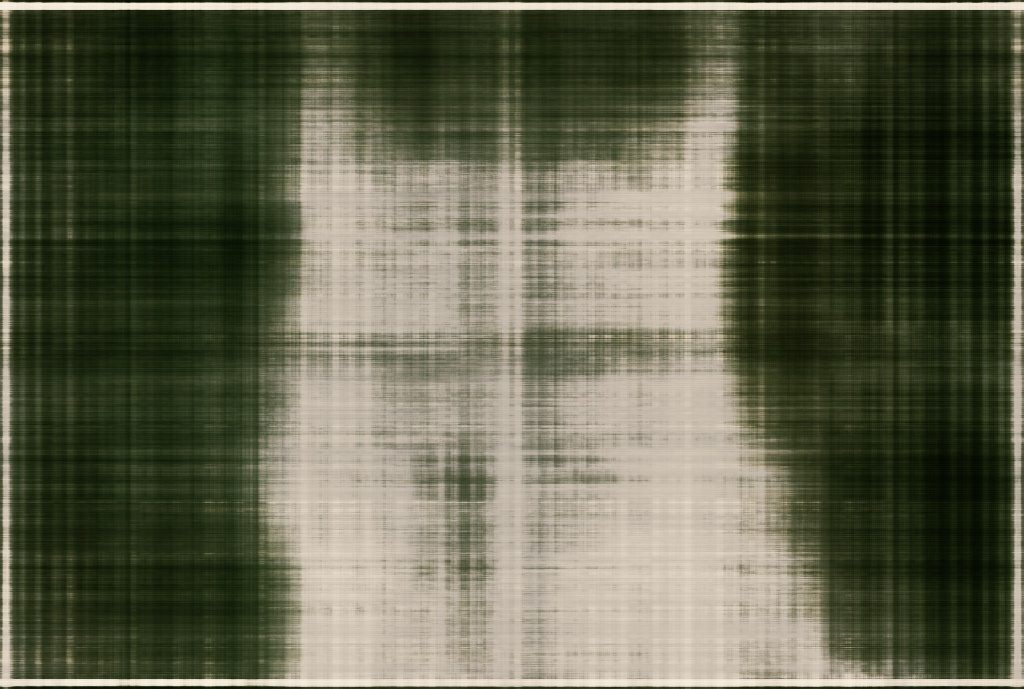

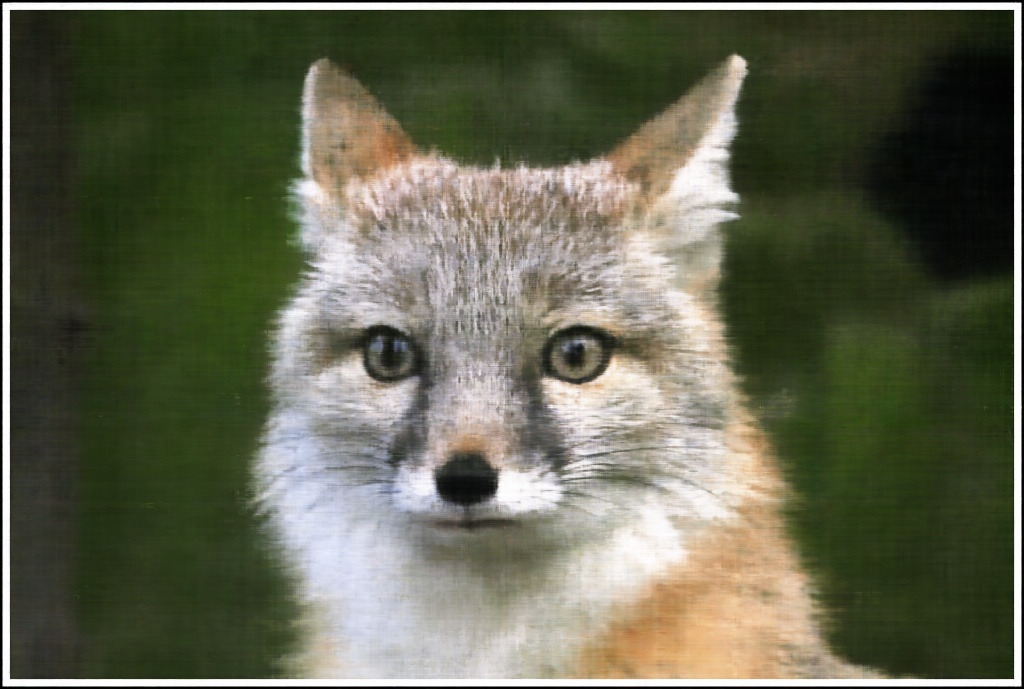

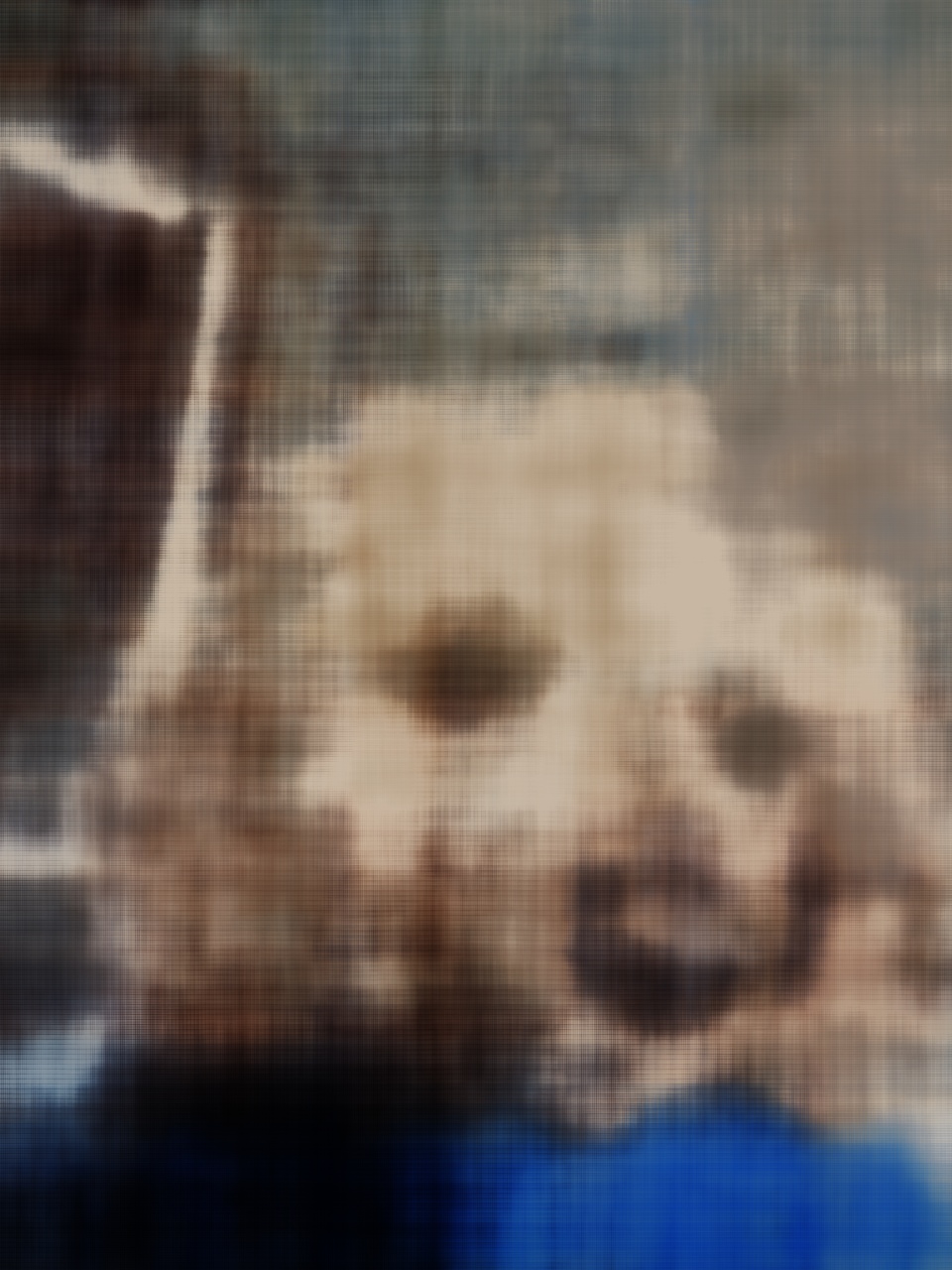

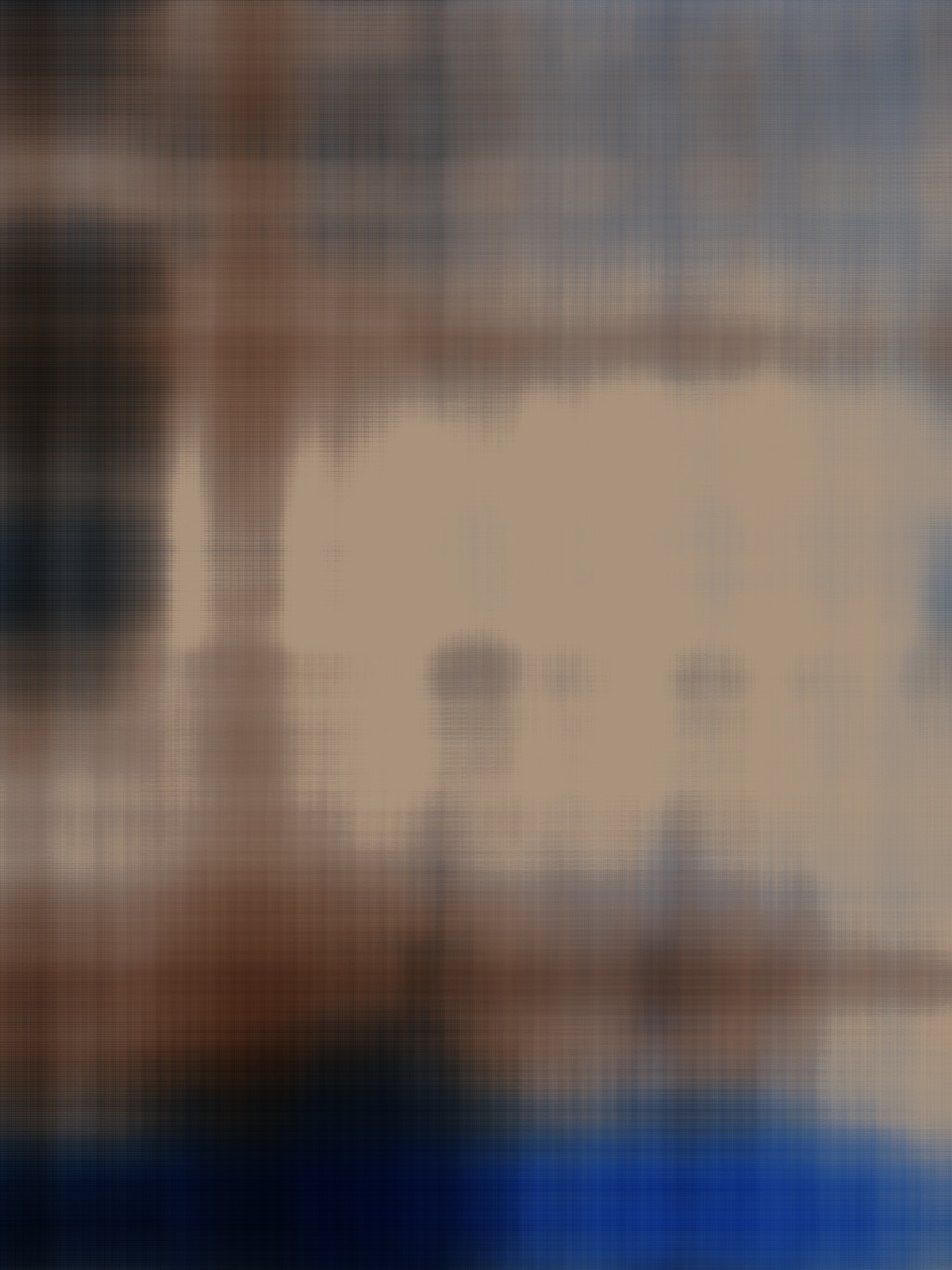

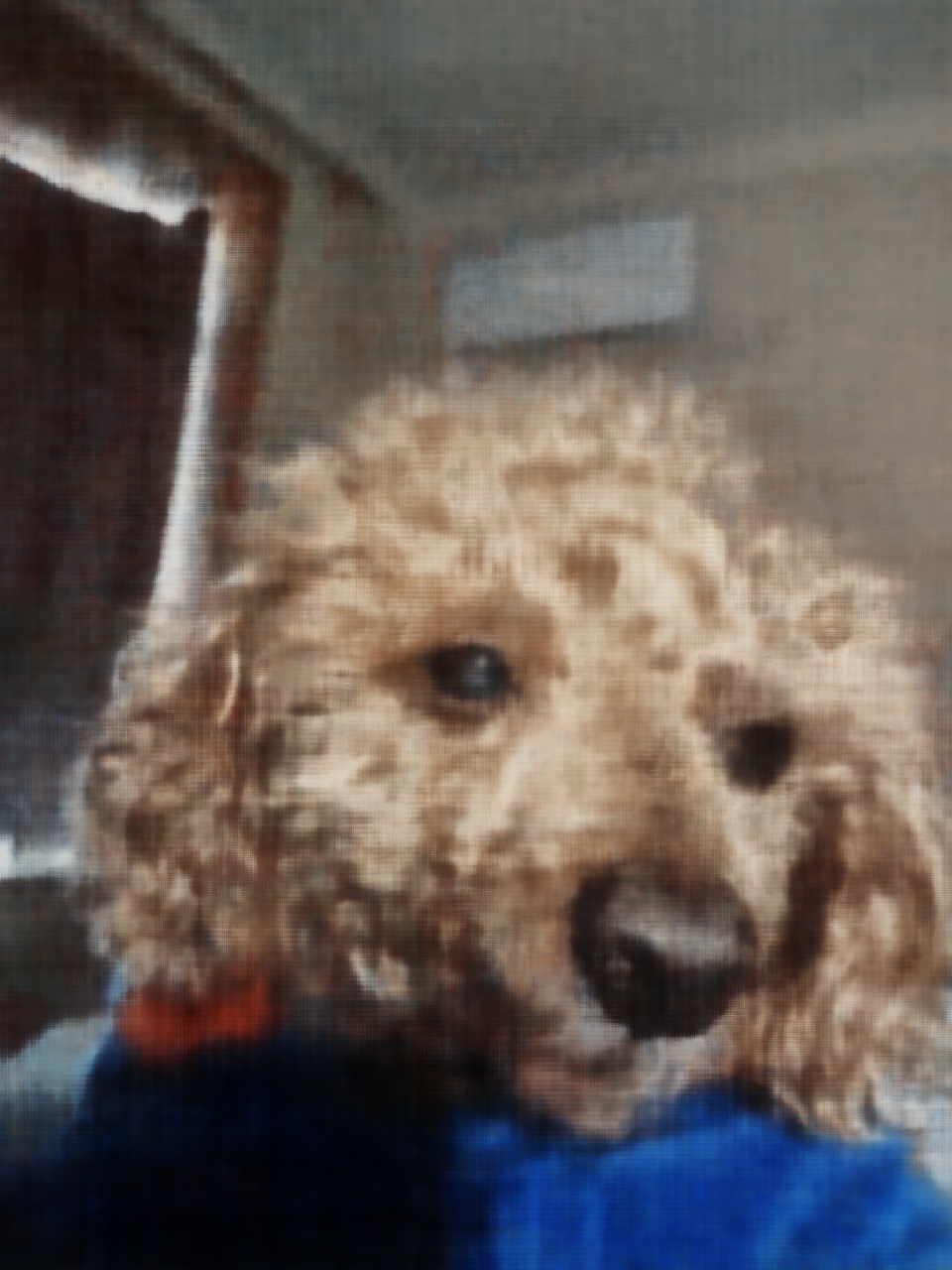

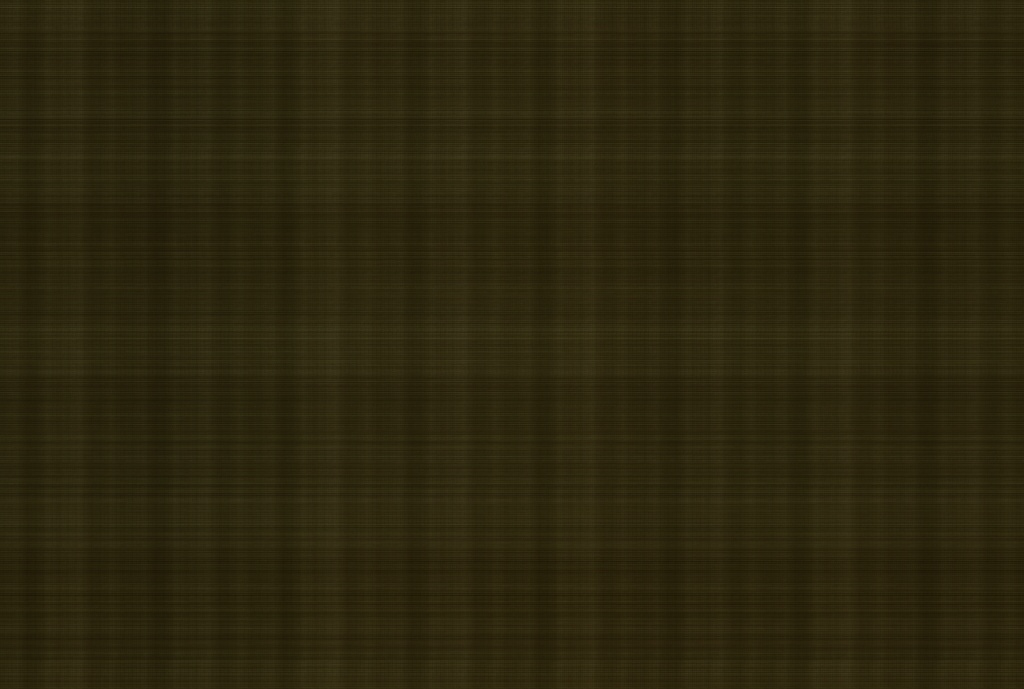

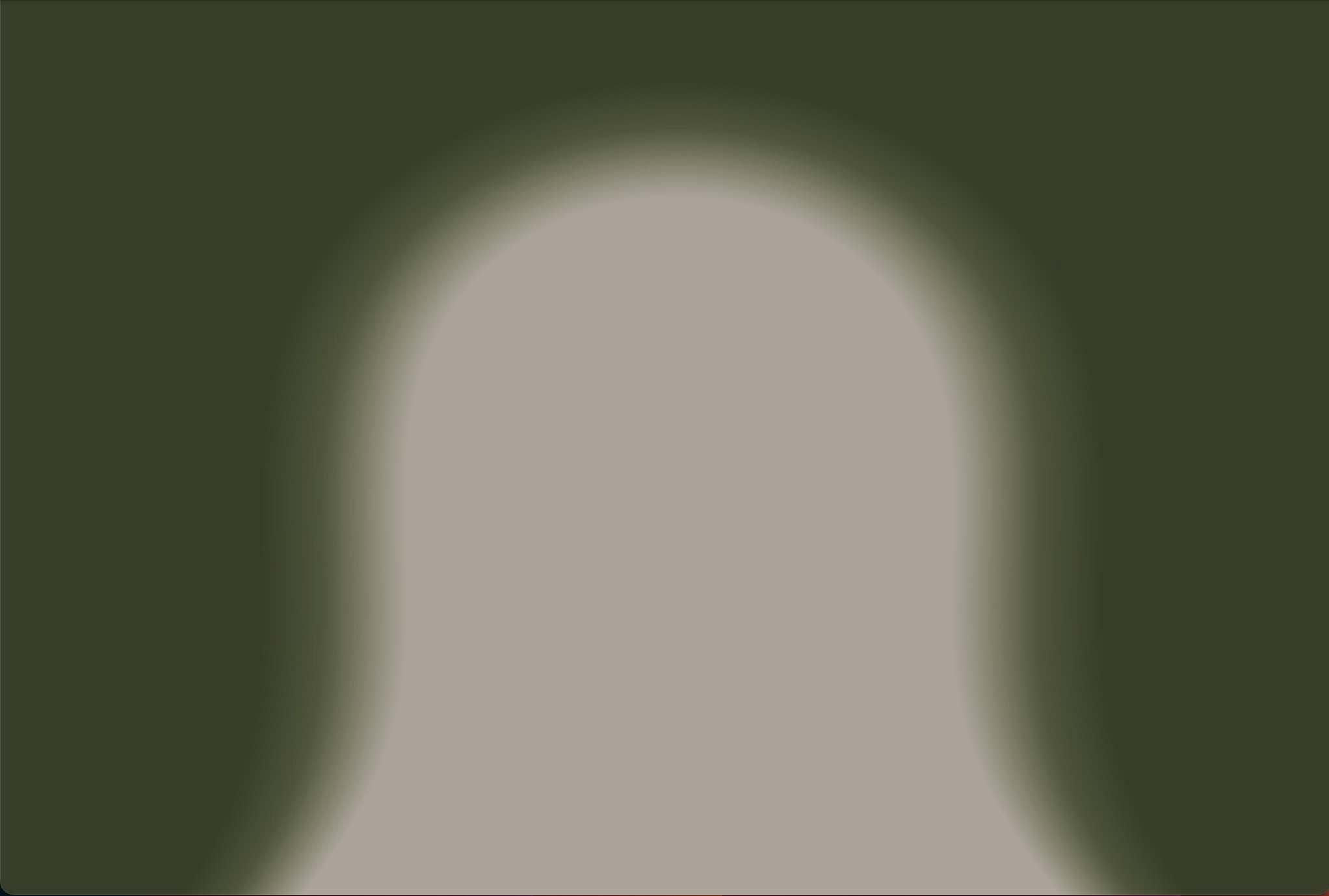

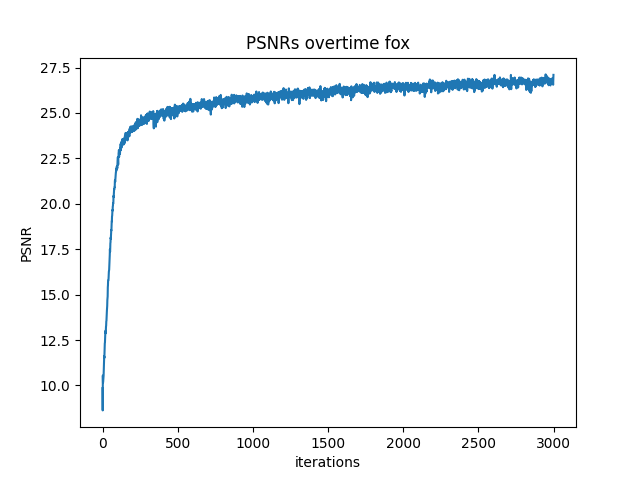

After training for 2000 iterations

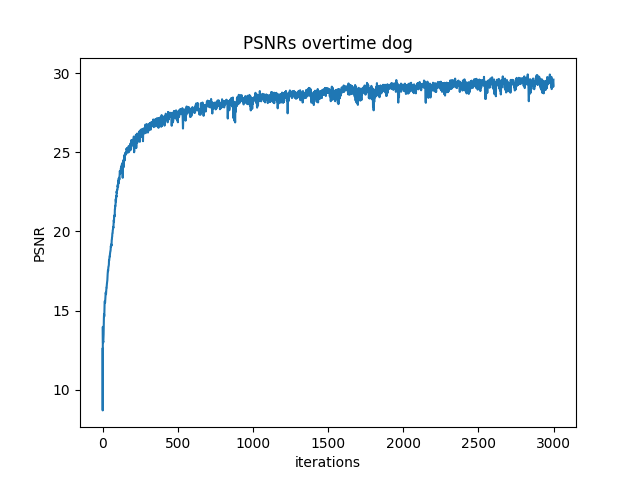

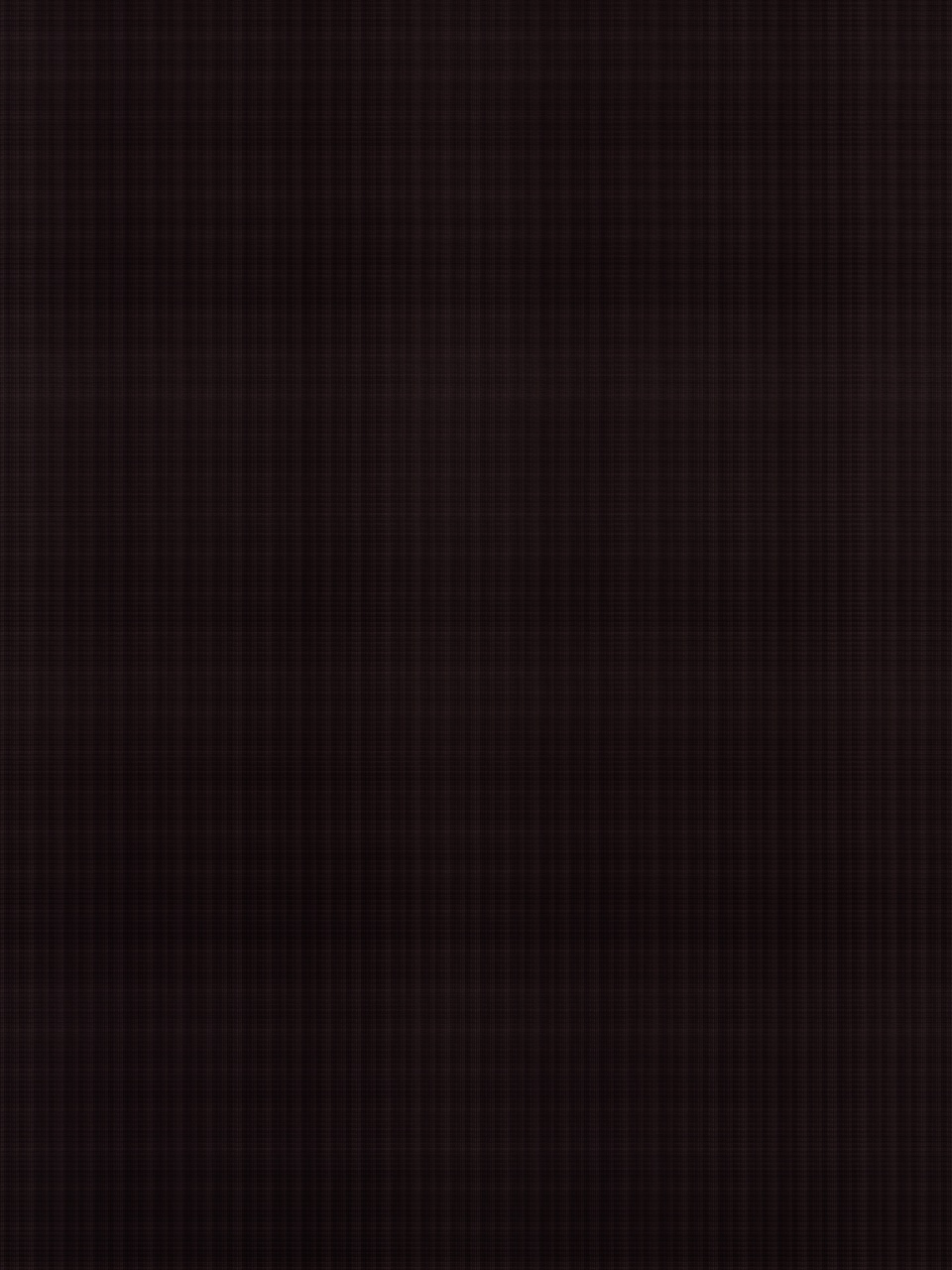

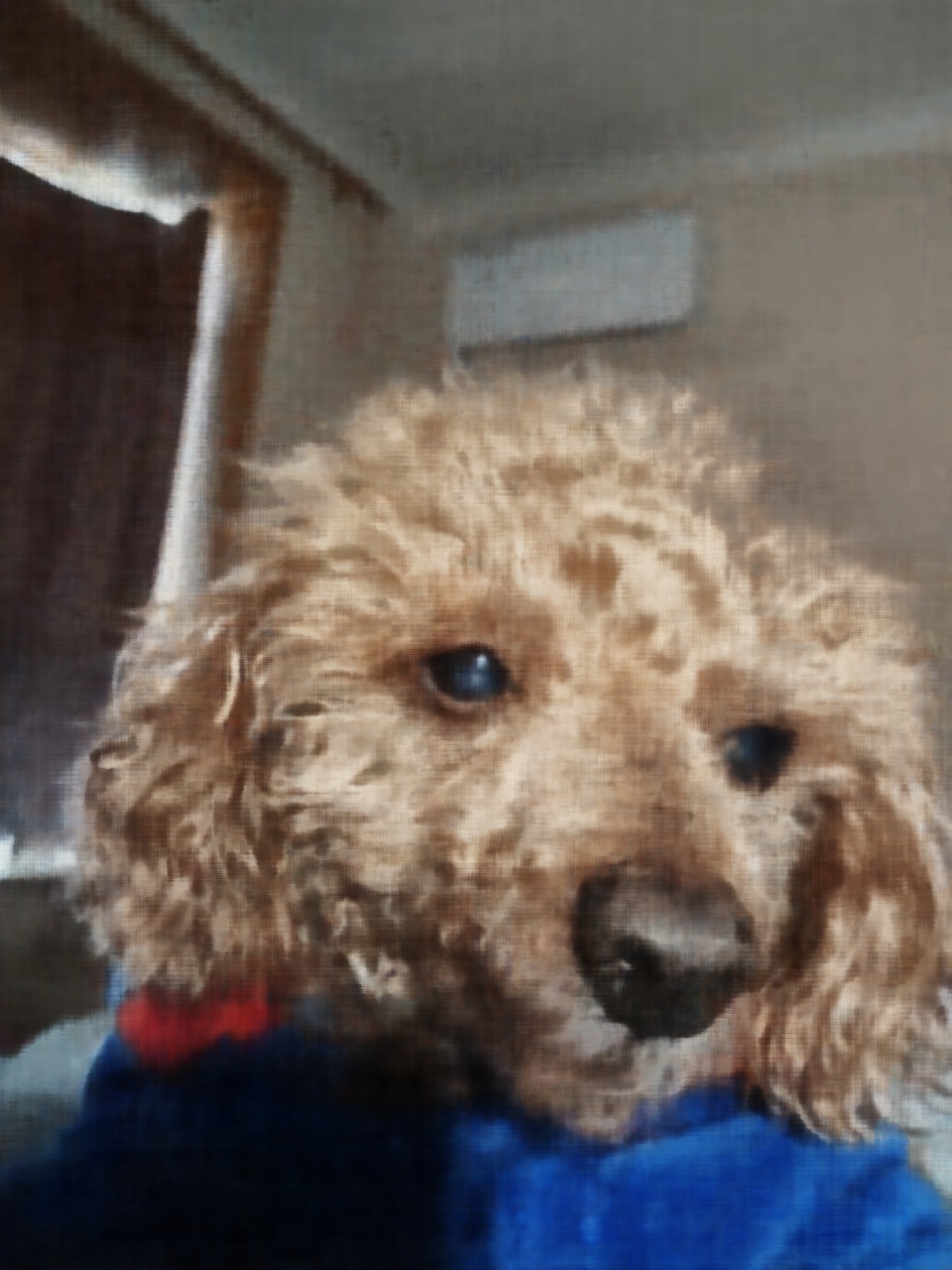

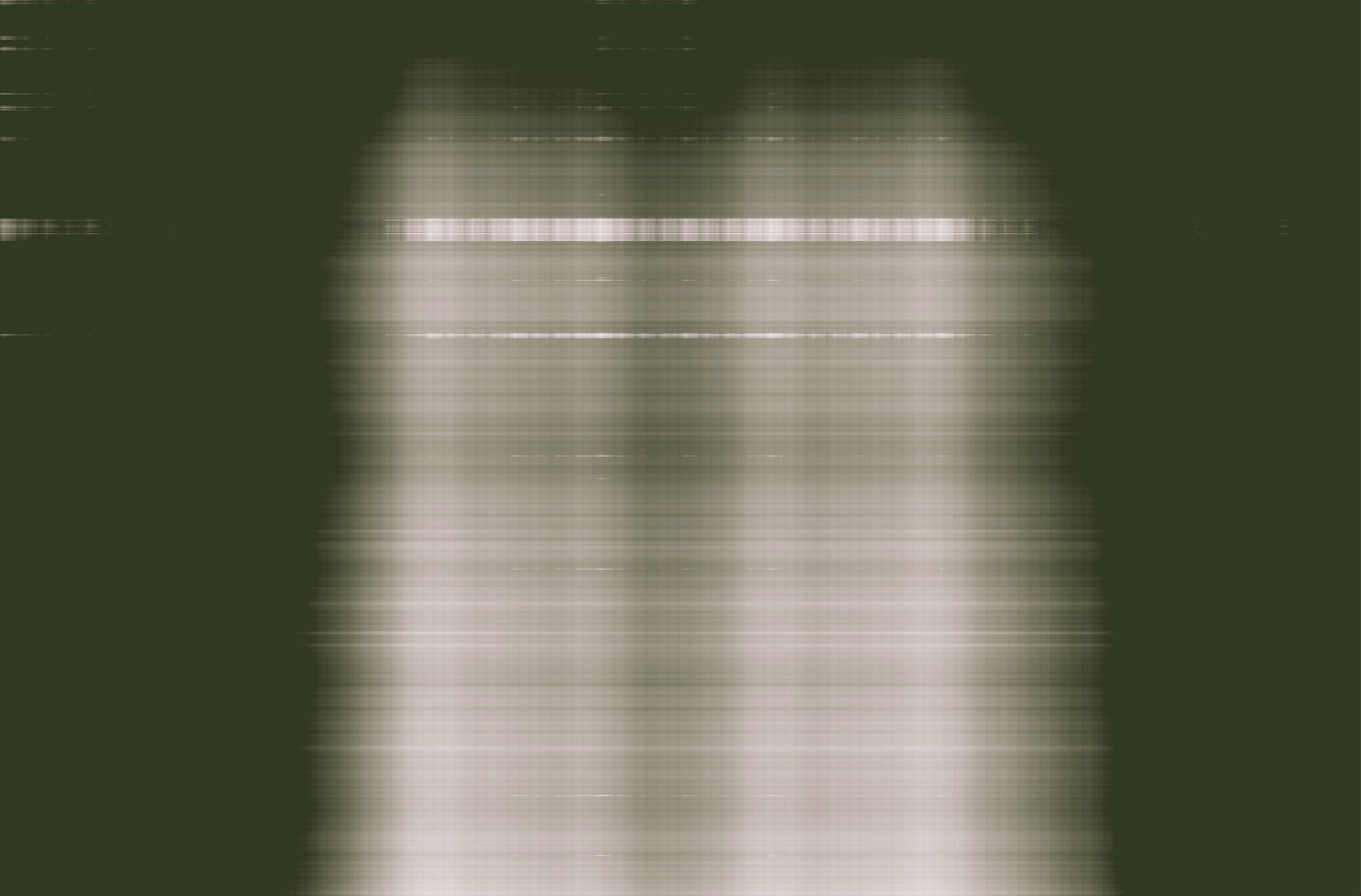

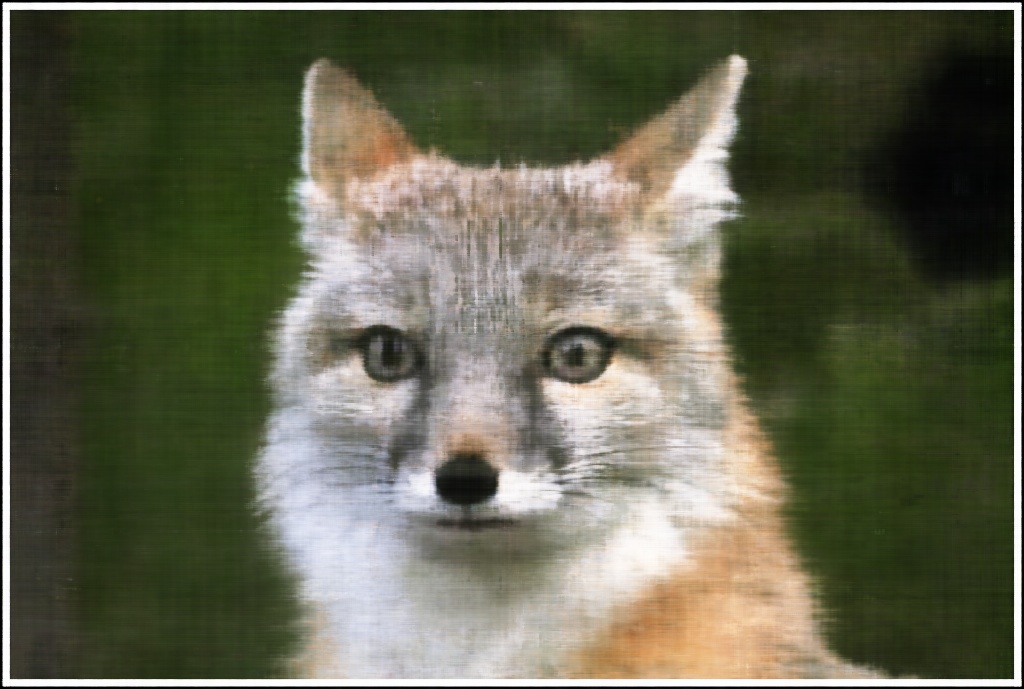

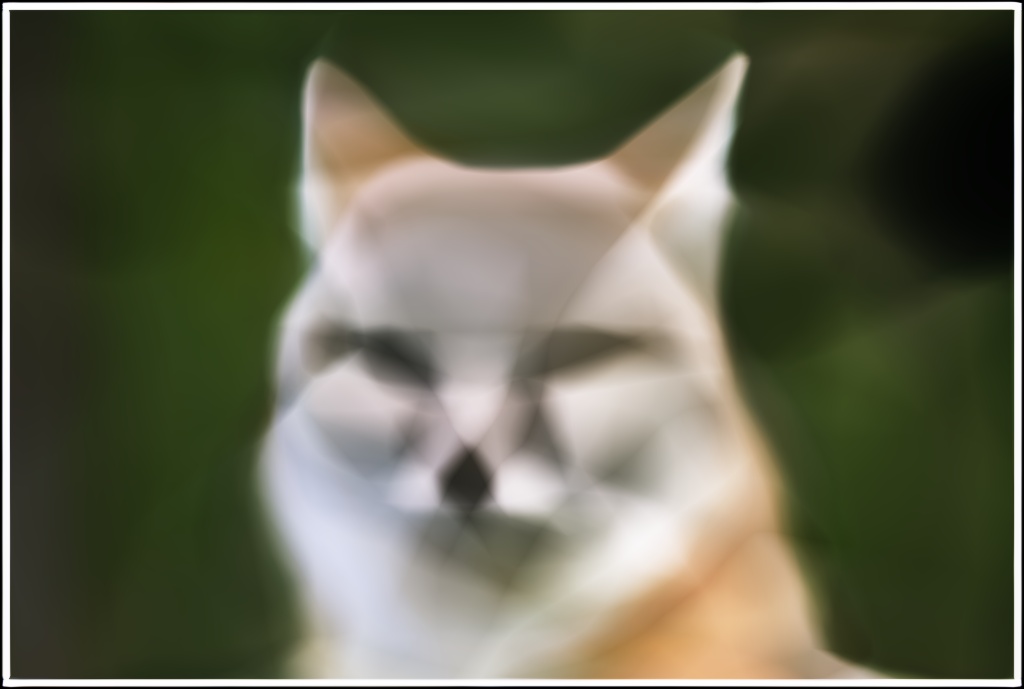

Comparing the four different outputs, we can see the width of MLP determine if MLP can actually learn enough information about general color in each area. Then max positional encoding layers determine how many different frequence the model can learn. If width of the channel low like (2,2), the model can't learn actaul color distribution which cause it only depict general fox area with uniform color. High L and low channle width, just let model learn some sharp edge of the fox. If L max position encoding layer is low, model can't extract that many details from the image. That's why L =2 with big channel width produce image with big color chunks no detail texture.

Part 2: Fit a Neural Radiance Field from Multi-view Images

Part 2.1: Create Rays from Cameras

Frist implement a function x_w = transform(c2w, x_c) using following formula

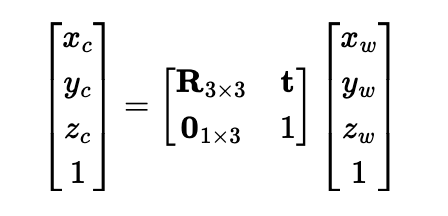

Then implement a function x_c = pixel_to_camera(K, uv, s) which transform 2d image coord to camera coord

I first inverse K, then use formula s * K_inv @ uv.T to calculate camera coord

Then implement function ray_o, ray_d = pixel_to_ray(K, c2w, uv)

I first use pixel_to_camera(K, uv, s) to convert uv into camera coordinate with s =1 then I use transform(c2w, x_c) to convert uv into world coordinate, then I use following formula to normalize the ray direction.

Part 2.2: Sampling

Sampling Rays from Images

First I need to sample rays from images data, I created an class call RaysData with following attribute:

    def __init__(self, images, K, c2ws, full_control = False):
            self.images = images # all images captured
            self.K = K # camera matrix
            self.c2ws = c2ws # camera to world matrix
            self.uvs = None # all coordinates
            self.pixels = None # all pixel values
            self.rays_o = None # all ray origin
            self.rays_d = None # all ray direction

in here full control mean I will generate all possible rays from all images, this is for full image rendering

To implement full control, I iterate over all images to generate all possible coordinate for each images then I generate matching rays from each coordinates using functions pixel_to_ray(K, c2w, uv) and store matching pixle values

To implement ray sampling, I create function def sample_rays(self, N, M=100) N: total ray want sampled, M: number of images to sample ray from

I calculate N//M to get number ray in each sampled images. I fisrt sample M images then sample N//M rays from each selected images

Implement Sampling Points along Rays

def sample_along_rays(r_os, r_ds, n=32, near=2.0, far=6.0, perturb=True, random=True):

I uniformly create some samples along the ray (t = np.linspace(near, far, n_samples)). Then convert each points to actual 3D coord sampled_x = r_os + r_ds * t Then I introduce some small perturbation to the points t = t + (np.random.rand(*t.shape) * t_width)

Part 2.3: Putting the Dataloading All Together

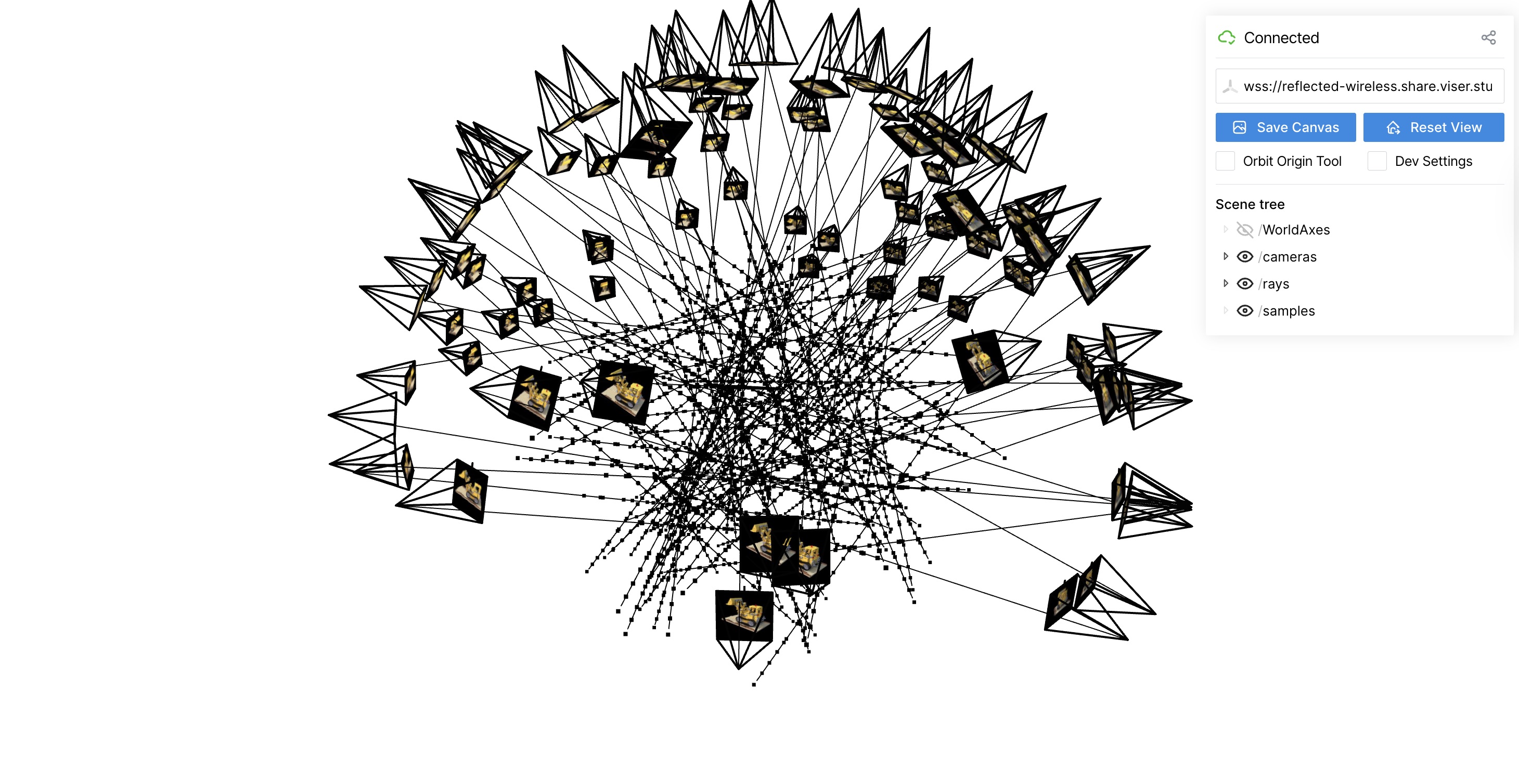

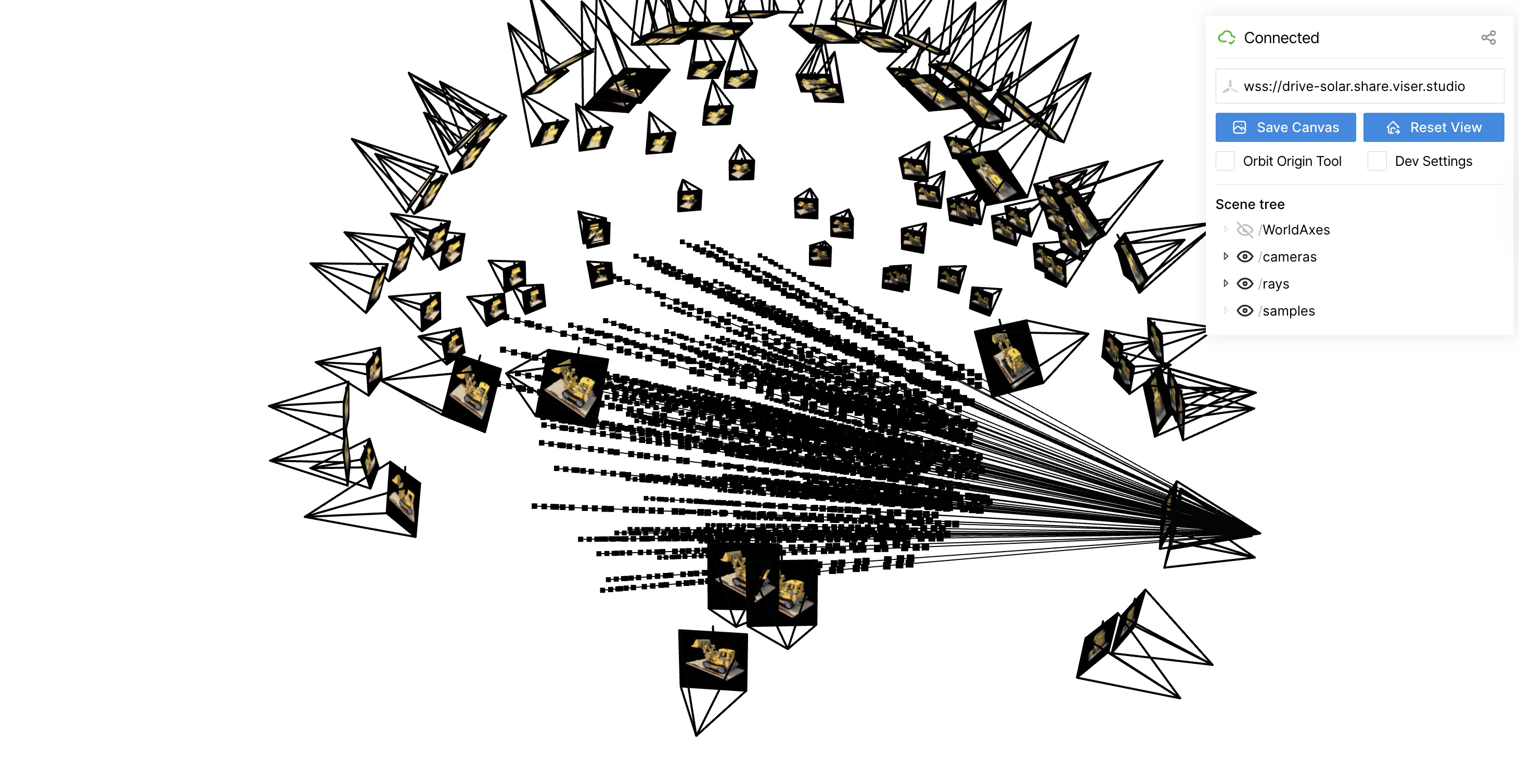

I used provided code to display sampled rays for lego dataset

Part 2.4: Neural Radiance Field

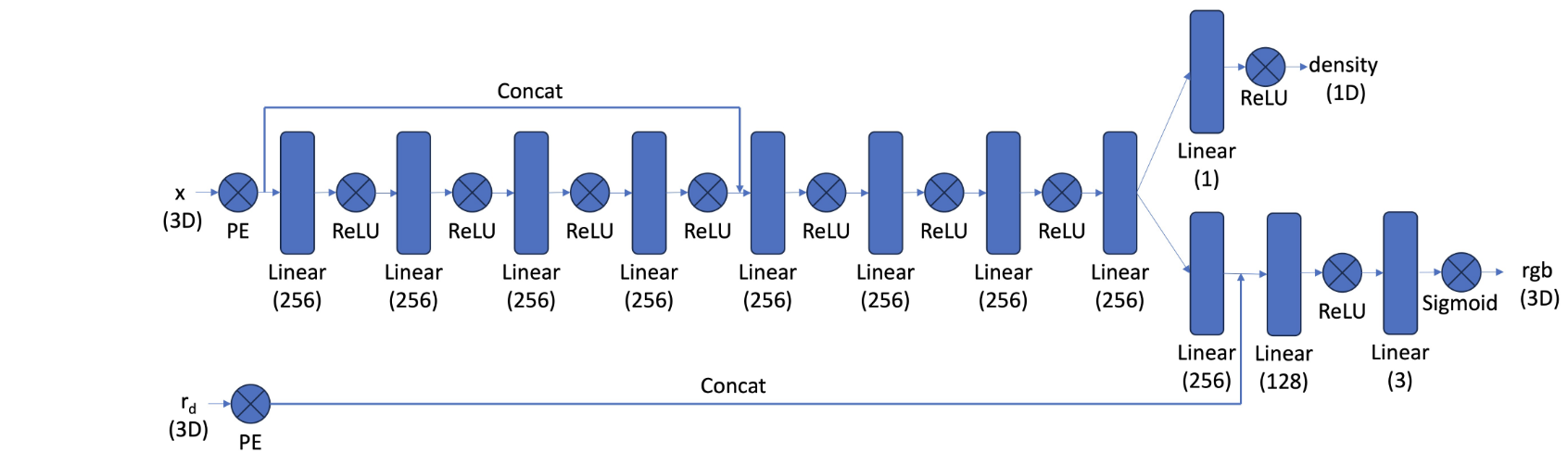

I implement my NeRF MLP base on following structure. MLP takes in two input: position encoding of 3D coord for a points and position encoding of 3D direction for ray output two things: density and rgb color for corresponding input. I implement using pytorch. I implement position encoding function in pytorch using this formula.

To improve modeling training, I tried to normalize the sampled point input by do the following

                        rays_o, rays_d, pixels = dataset.sample_rays(20000, M=len(images_train))
                        points, _ = sample_along_rays(rays_o, rays_d, n=64, near=near, far=far, perturb=True)
                        bbox_min, bbox_max = get_boundingbox(points)
                        points_norm = points_normalization(points, bbox_min, bbox_max)

I will sample 20000 points and try to use them to estimate the bouding box the space that contain desire image, then I normalize all points coord using bounding box.

Part 2.5: Volume Rendering

Using following formula, I can calculate actual pixel value from NeRF MLP's output. I built function def volrend(sigmas, rgbs, step_size):

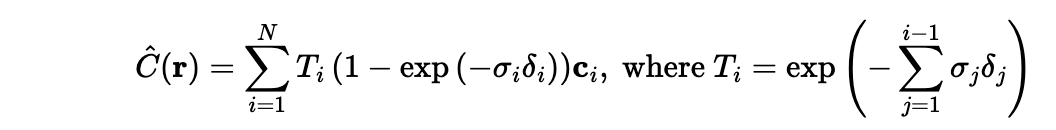

Lego Example

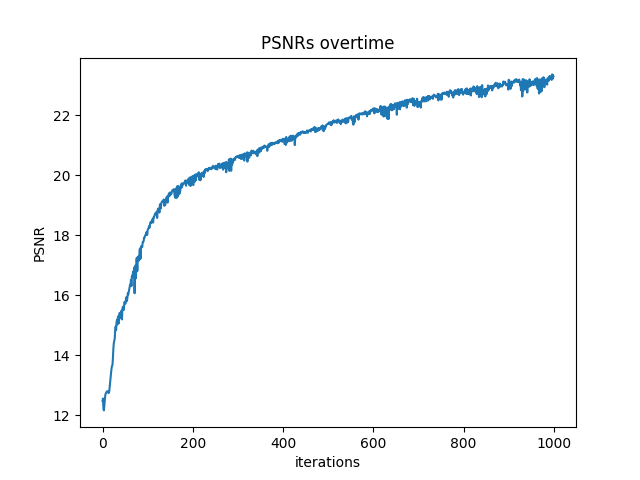

I trained with

                batch_size = 10000
                num_epochs = 1000
                coord_pe_layers = 10
                ray_pe_layers = 4
                near, far = 2, 6

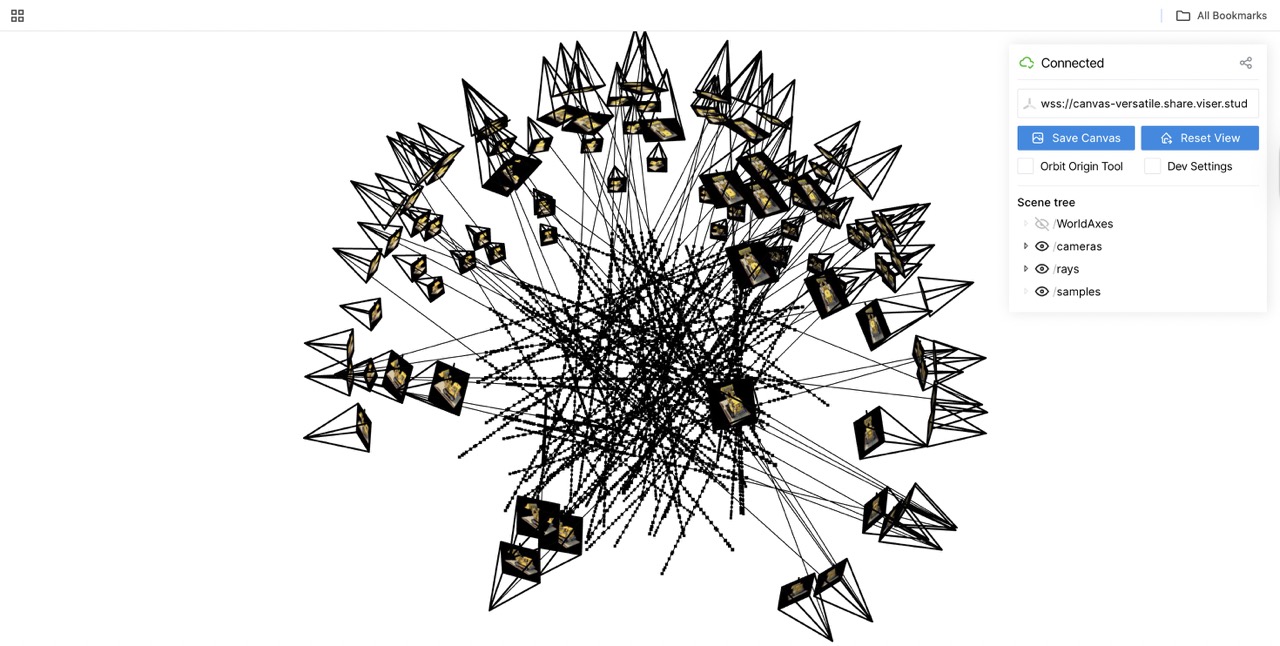

Sampling Rays and Points during iter=100

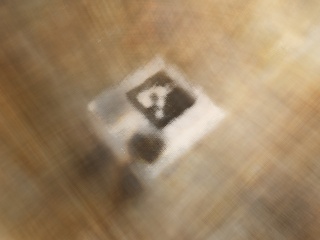

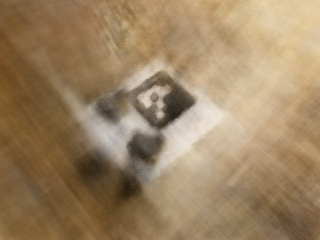

Part 2.6: Training with Your Own Data

To make training faster, I resize all image to 1/4 * h and 1/4 * w

I used the same MLP construction showed above, and here is the Hyperparameter

batch_size = 10000
num_epochs = 3000
coord_pe_layers = 10
ray_pe_layers = 4
near, far = 0.02, 0.5

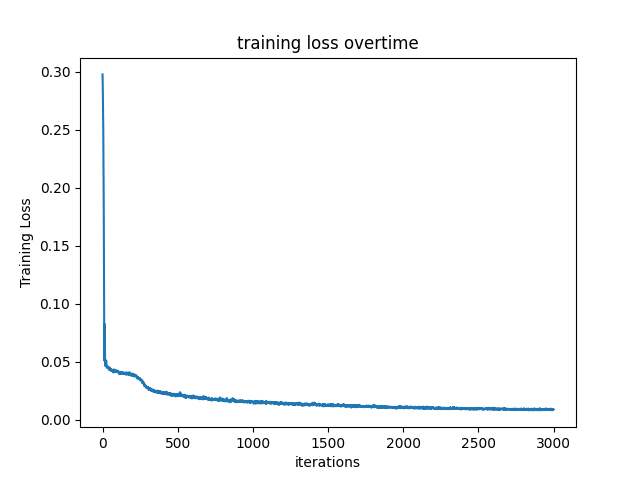

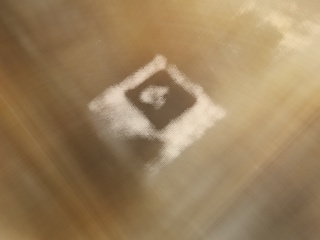

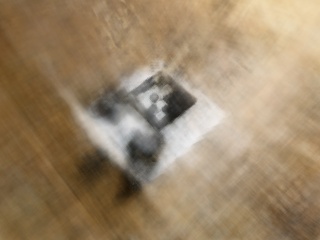

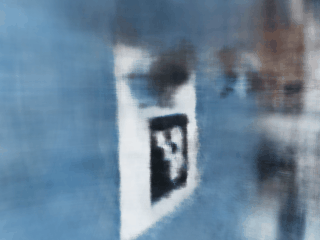

Explaination: 1. I trained longer epochs to let MLP actually detect my obejct, my object is relatively small. 2. I chose near, far = 0.02, 0.5 because my object is around 15 cm away from my camera 3. I keep same PE layers since it captured enough details and don't explode my GPU

I didin't change too much code
